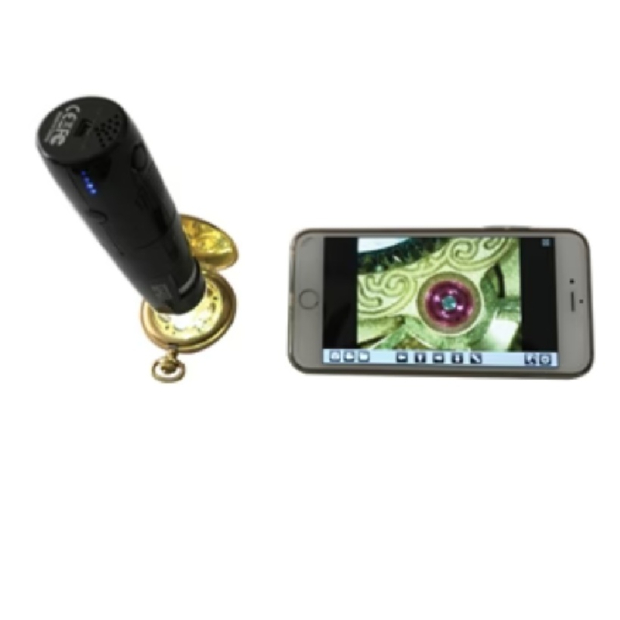

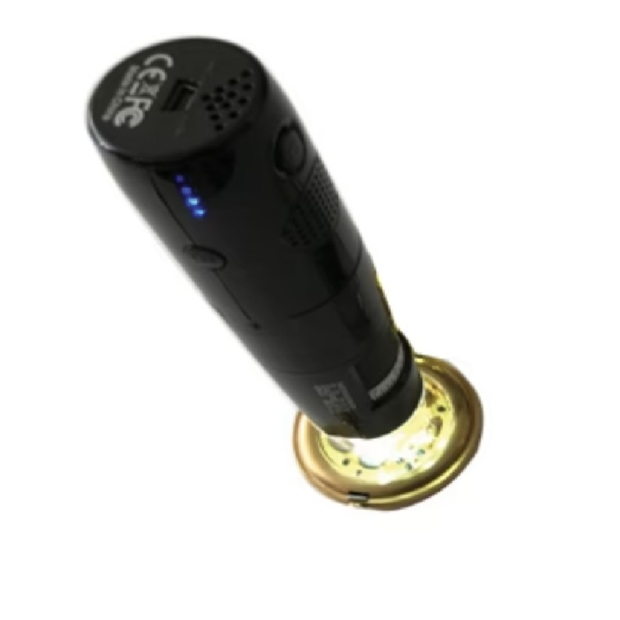

With or Without Stand
DUAL USAGE: WI-FI & WIRED USB, UP TO 200X.
Can be used as a hand held device or with available microscope stand. Includes measurement software with calibration ruler.
Features
Magnification: 5x - 200x @ 17" monitor full screen view
Optical Format: 1/3" CMOS Sensor (4:3)
Field of View: Min. 2.5mm x 1.9mm @17mm working distance(200X) (2.8µm/pixel) Max: 100mm x 75mm @300mm working distance (5x)
Image Sensor: 1.3 Mega Pixels
Video Capture Resolution: 1600 x 1200, 1280 x 960, 640 x 480
Color: 24 bit RGB or YUV or MJPG
Lens: High precision microscope Lens
Focus Range: Manual from 8mm to 300mm
White Balance: Auto
Exposure Time: Auto
Light Source: Integrated adjustable LED & UV illumination
Length: 122mm
Diameter: 36mm
Output: USB Streaming Video
Power Supply: 5V DC from USB port
With or Without Stand
DUAL USAGE: WI-FI & WIRED USB, UP TO 200X.
Can be used as a hand held device or with available microscope stand. Includes measurement software with calibration ruler.
Features
Magnification: 5x - 200x @ 17" monitor full screen view
Optical Format: 1/3" CMOS Sensor (4:3)
Field of View: Min. 2.5mm x 1.9mm @17mm working distance(200X) (2.8µm/pixel) Max: 100mm x 75mm @300mm working distance (5x)
Image Sensor: 1.3 Mega Pixels
Video Capture Resolution: 1600 x 1200, 1280 x 960, 640 x 480
Color: 24 bit RGB or YUV or MJPG
Lens: High precision microscope Lens
Focus Range: Manual from 8mm to 300mm
White Balance: Auto
Exposure Time: Auto
Light Source: Integrated adjustable LED & UV illumination
Length: 122mm
Diameter: 36mm
Output: USB Streaming Video
Power Supply: 5V DC from USB port

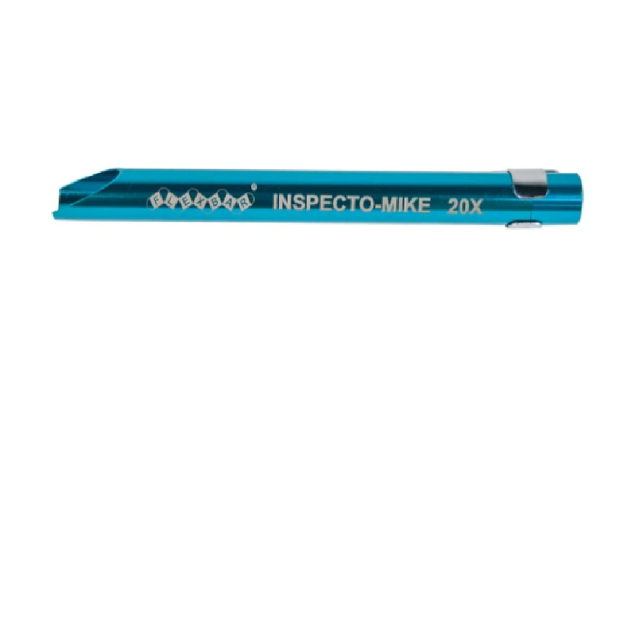

Inspecto-Mike
A powerful pocket microscope (about 5" long)
2 Powers to Choose From (20x & 40x)
4 Lens system gives accurate readings
Precise internal scale readings to .001", scales accurate to within 1%. Permanently mounted scales are optionally superimposed on object being viewed and give quick, accurate and direct measurements of magnified objects.
Lightweight
Precision ground lenses
Large clear field - brighter than all others (special beveled opening)
12217
Inspecto-Mike
A powerful pocket microscope (about 5" long)
2 Powers to Choose From (20x & 40x)
4 Lens system gives accurate readings
Precise internal scale readings to .001", scales accurate to within 1%. Permanently mounted scales are optionally superimposed on object being viewed and give quick, accurate and direct measurements of magnified objects.
Lightweight
Precision ground lenses
Large clear field - brighter than all others (special beveled opening)
12216

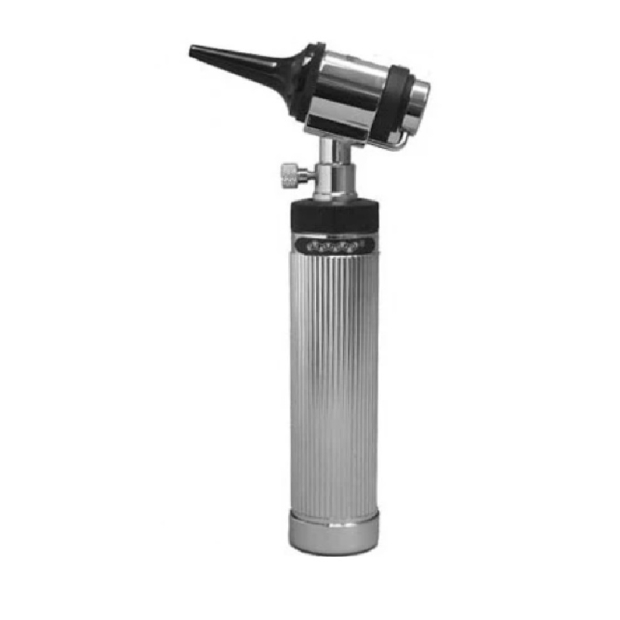

Economy Inspecto-Scope
Inspecto-Scope - an economically priced, general inspection scope ideal for magnifying and illuminating hard to see areas. This compact functional instrument reflects the same level of craftsmanship and precision as the most expensive medical instruments on today's market. Includes plastic carrying pouch. Uses convenient "C" batteries.
Up to 4X magnification

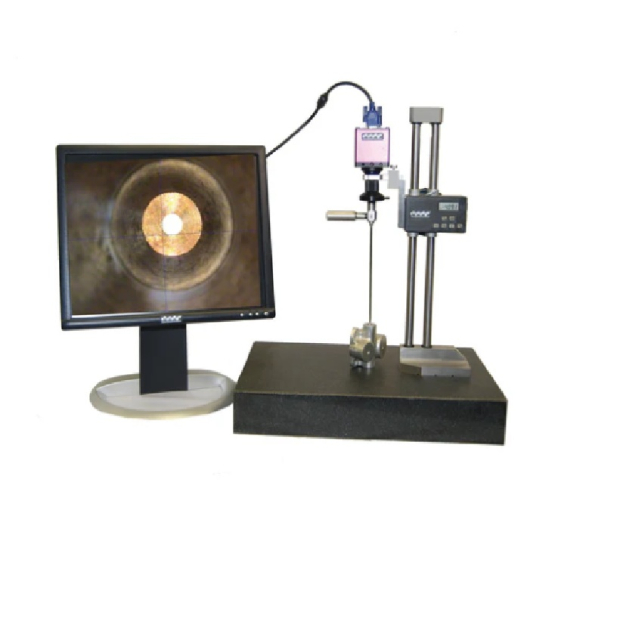

Internal Bore Video Measurement/Inspection System
Inspects bores with precise vertical control
P.C. is not required
Camera connects directly to monitor
Measures groove heights
Measures through hole distance
Inspect for F.O.D.
0-7" Range
2-3" Throat Clearance - Call for extended part height options
Larger Stands, Scopes and Lighting options Available. Please call with your application requirements.
2.0 Megapixel camera w/internal crosshair generator
2.0GB SD memory Card
Digital Vertical measurement stand
7" 4mm 90° borescope
Battery Illuminator
23" Hi-Resolution monitor
18-12720 Lightsource

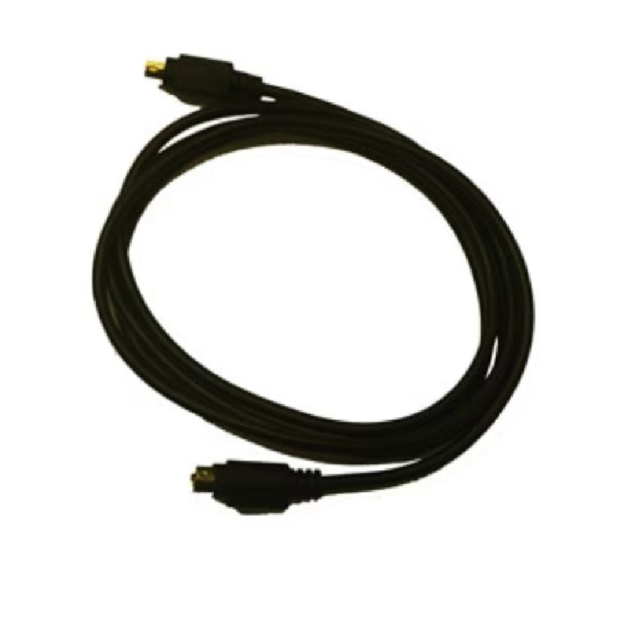

13283 10 foot light guide
Note: Surface plate is not included (as shown in photo
