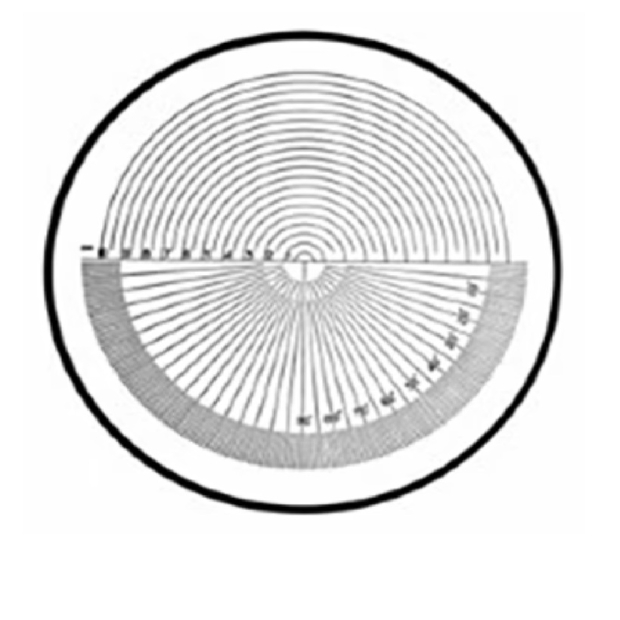

Reticle#9 (10x Comparator) 10X Reticle No. 9

Designed for 10X Series Pocket Optical Comparators.

1⅜" Diamete

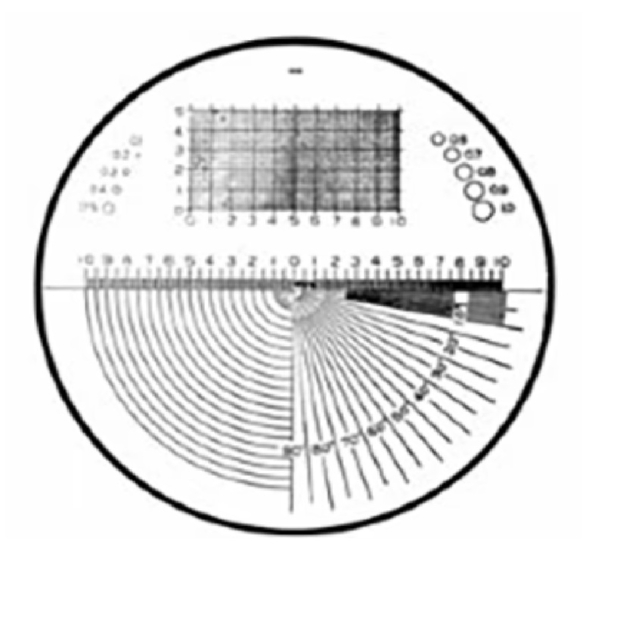

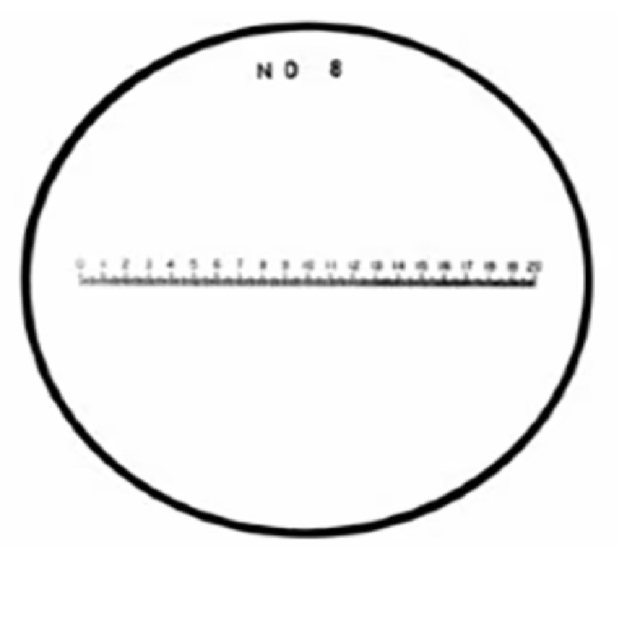

Reticle#8 (10x Comparator) 10X Reticle No. 8
Designed for 10X Series Pocket Optical Comparators.

1⅜" Diameter.

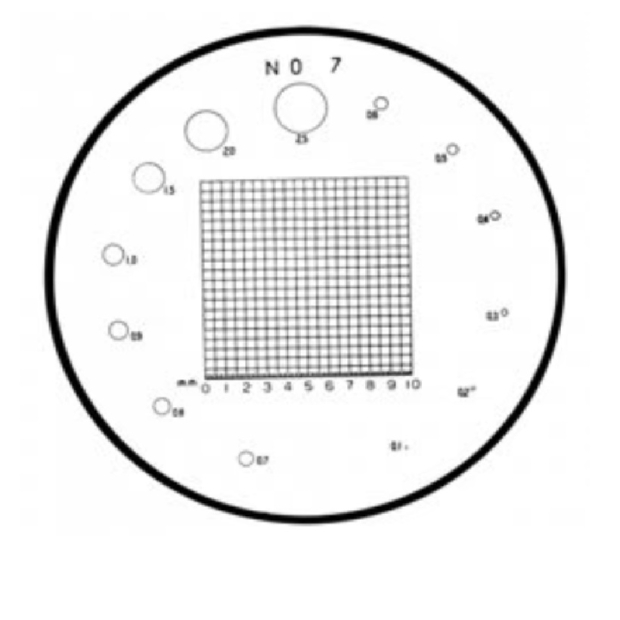

Reticle#7 (10x Comparator) 10X Reticle No. 7
Designed for 10X Series Pocket Optical Comparators.

1⅜" Diameter.

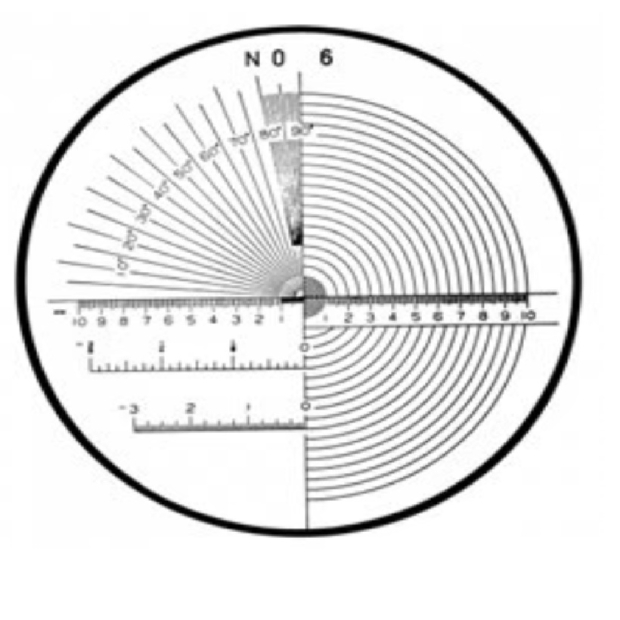

Reticle#6 (10x Comparator) 10X Reticle No. 6
Designed for 10X Series Pocket Optical Comparators.

1⅜" Diameter.

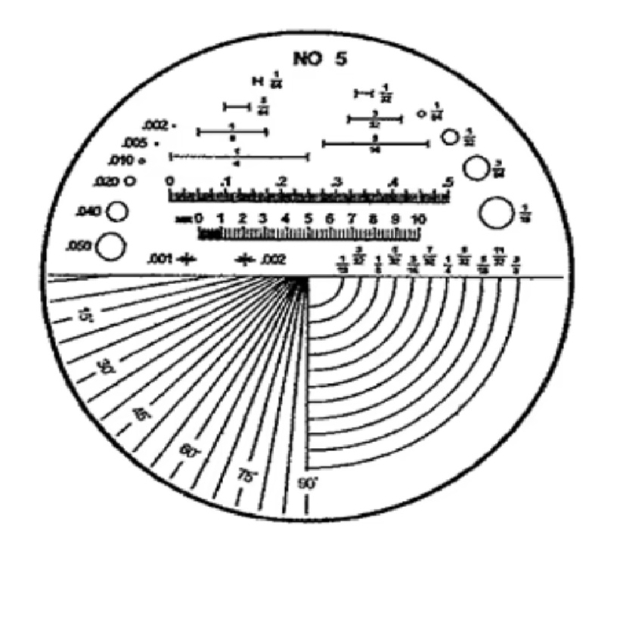

Reticle#5 (10x Comparator) 10X Reticle No. 5
Designed for 10X Series Pocket Optical Comparators.

1⅜" Diameter.

Reticle#4 (10x Comparator) 10X Reticle No. 4
Designed for 10X Series Pocket Optical Comparators.

1⅜" Diameter.

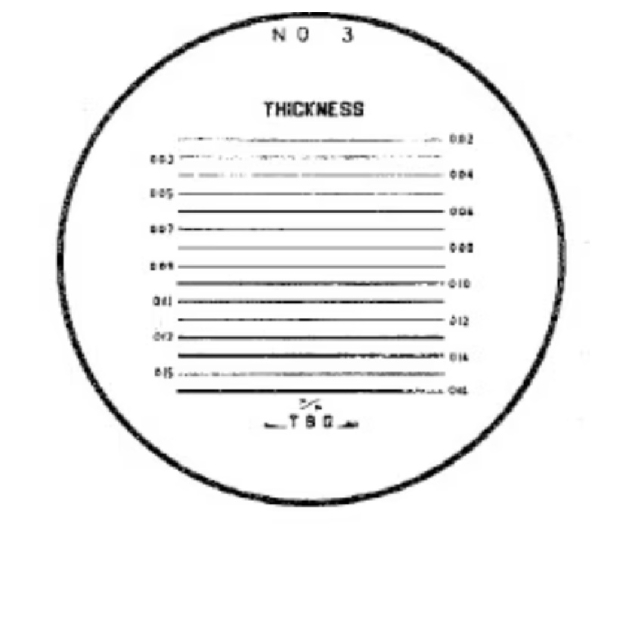

Reticle#3 (10x Comparator) 10X Reticle No.3
Designed for 10X Series Pocket Optical Comparators.

1⅜" Diameter.

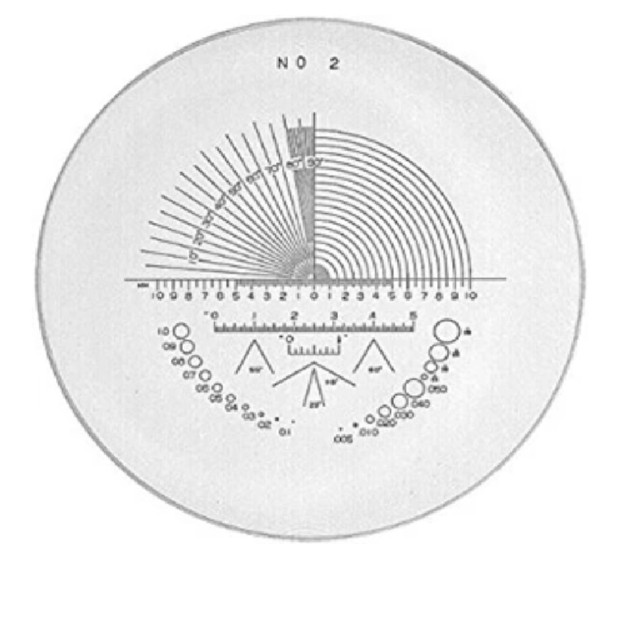

Reticle#2 (10x Comparator) 10X Reticle No. 2
Designed for 10X Series Pocket Optical Comparators.

1⅜" Diameter.

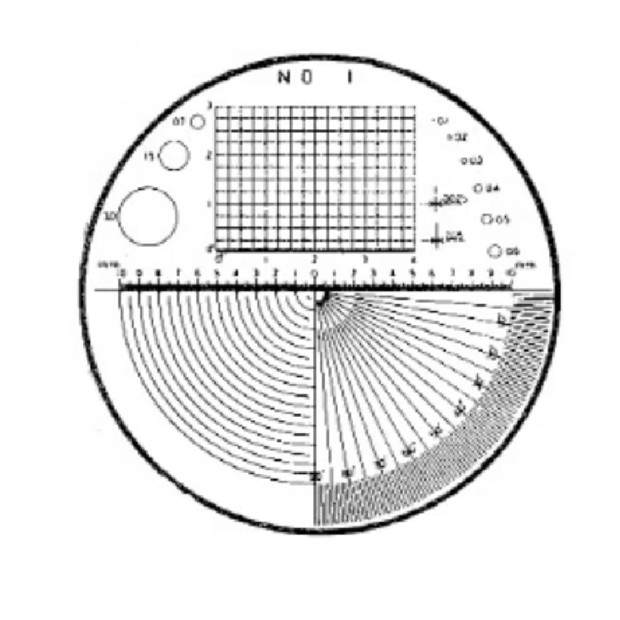

Reticle#1 (10x Comparator) 10X Reticle No. 1

Designed for 10X Series Pocket Optical Comparators.

1⅜" Diameter.

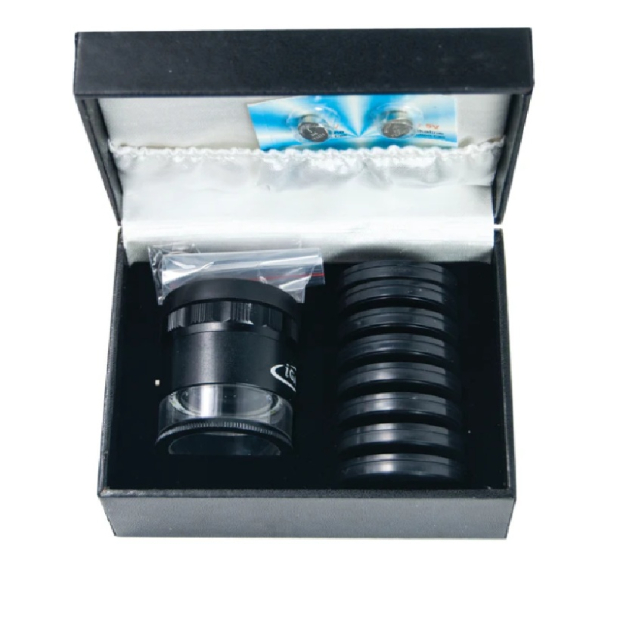

10X LED Lighted Pocket Optical Comparator Set
Sold in heavy duty case. Set includes 9 reticles: 1,2,3,7,8,9,10,11,13

8 LED's vividly illuminate the Field of View.
Includes a photo etched glass reticle #2 scale covering a wide range of measurement applications. Convenient for checking angles, hole sizes, length and more. 10X magnifier produces sharp, undistorted and aberration-free images.
Crystal clear view of reticle graduations

Includes 9 reticles 1,2,3,7,8,9,10,11,13

Measures angles, diameters, linear metric and inch

Focusing ring

On/Off switch

Accepts any Flexbar 1 3/8" diameter 10X Series Reticle (sold Separately)

Uses 4x 1.5V Alkaline Batteries

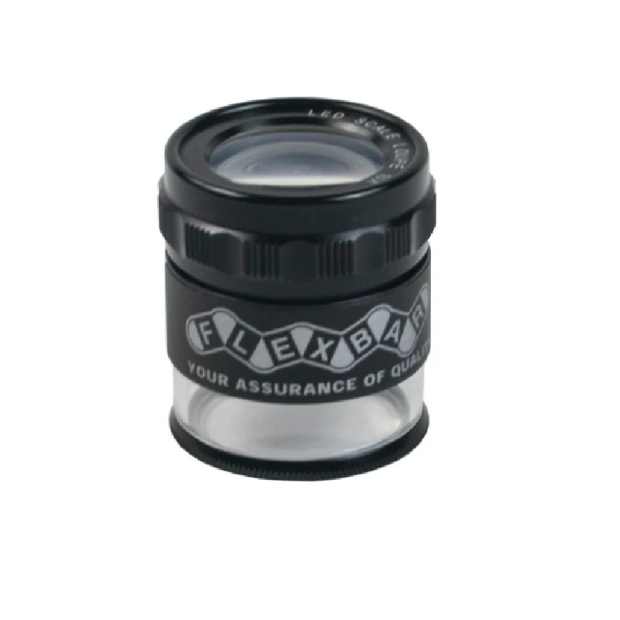

10X LED Lighted Pocket Optical Comparator
8 LED's vividly illuminate the Field of View.
Includes a photo etched glass reticle #2 scale covering a wide range of measurement applications. Convenient for checking angles, hole sizes, length and more. 10X magnifier produces sharp, undistorted and aberration-free images.
Crystal clear view of reticle graduations

Standard #2 10X reticle (included)

Measures angles, diameters, linear metric and inch

Focusing ring

On/Off switch

Soft leatherette carry case

Accepts any Flexbar 1 3/8" diameter 10X Series Reticle (sold Separately)

Hi-Res Hand Held Video Measuring Microscope

With or Without Stand
DUAL USAGE: WI-FI & WIRED USB, UP TO 200X.

Can be used as a hand held device or with available microscope stand. Includes measurement software with calibration ruler.

Features

Magnification: 5x - 200x @ 17" monitor full screen view
Optical Format: 1/3" CMOS Sensor (4:3)
Field of View: Min. 2.5mm x 1.9mm @17mm working distance(200X) (2.8µm/pixel) Max: 100mm x 75mm @300mm working distance (5x)
Image Sensor: 1.3 Mega Pixels
Video Capture Resolution: 1600 x 1200, 1280 x 960, 640 x 480
Color: 24 bit RGB or YUV or MJPG
Lens: High precision microscope Lens
Focus Range: Manual from 8mm to 300mm
White Balance: Auto
Exposure Time: Auto
Light Source: Integrated adjustable LED & UV illumination
Length: 122mm
Diameter: 36mm
Output: USB Streaming Video
Power Supply: 5V DC from USB port
