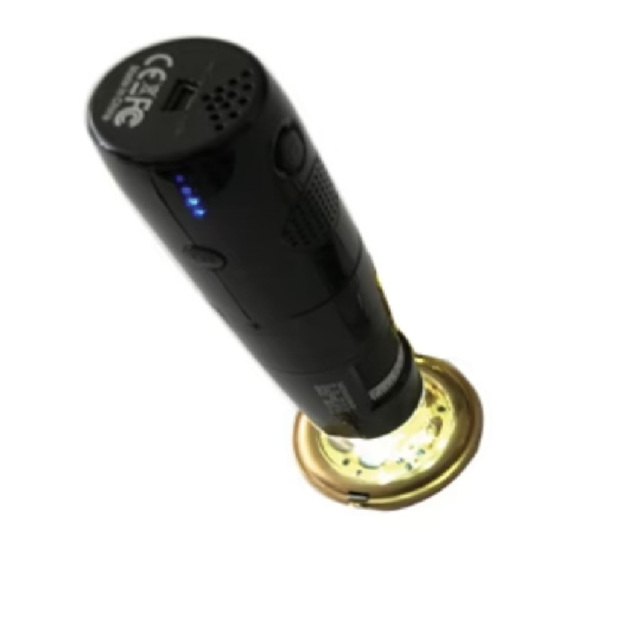

Hi-Res Hand Held Video Measuring Microscope

With or Without Stand
DUAL USAGE: WI-FI & WIRED USB, UP TO 200X.

Can be used as a hand held device or with available microscope stand. Includes measurement software with calibration ruler.

Features

Magnification: 5x - 200x @ 17" monitor full screen view
Optical Format: 1/3" CMOS Sensor (4:3)
Field of View: Min. 2.5mm x 1.9mm @17mm working distance(200X) (2.8µm/pixel) Max: 100mm x 75mm @300mm working distance (5x)
Image Sensor: 1.3 Mega Pixels
Video Capture Resolution: 1600 x 1200, 1280 x 960, 640 x 480
Color: 24 bit RGB or YUV or MJPG
Lens: High precision microscope Lens
Focus Range: Manual from 8mm to 300mm
White Balance: Auto
Exposure Time: Auto
Light Source: Integrated adjustable LED & UV illumination
Length: 122mm
Diameter: 36mm
Output: USB Streaming Video
Power Supply: 5V DC from USB port
