Individual Hardness Testing Files
Easy to use, portable Rockwell hardness testing system. For use in all metalworking facilities.
A unique, specially shaped file with a non-slip grip, color-coded handle. The Rockwell value is printed on handle.
Flexbar precision testing files have specially curved tips which can reach into internal slots, grooves and bores which cannot otherwise be tested using conventional types of fixed or portable hardness testers. They can be taken out-of-factory sites to test for hardness on large structures or segments of machinery. For example large surface-hardened gears, large printing cylinders or weld zones of heat affected pipe lines which cannot be moved to a stationary
Individual Hardness Testing Files
Easy to use, portable Rockwell hardness testing system. For use in all metalworking facilities.
A unique, specially shaped file with a non-slip grip, color-coded handle. The Rockwell value is printed on handle.
Flexbar precision testing files have specially curved tips which can reach into internal slots, grooves and bores which cannot otherwise be tested using conventional types of fixed or portable hardness testers. They can be taken out-of-factory sites to test for hardness on large structures or segments of machinery. For example large surface-hardened gears, large printing cylinders or weld zones of heat affected pipe lines which cannot be moved to a stationary teste

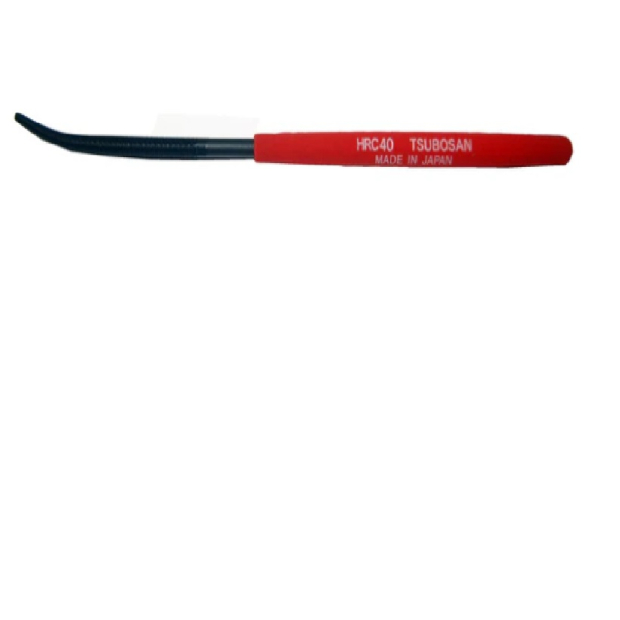

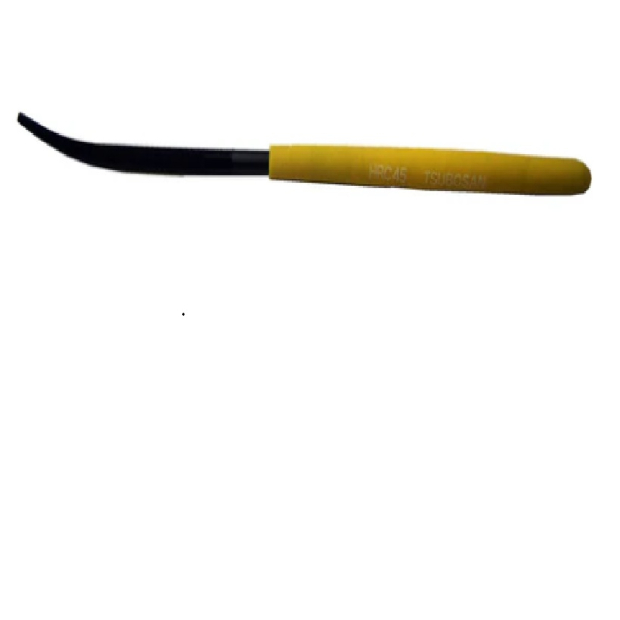

Individual Hardness Testing File
Easy to use, portable Rockwell hardness testing system. For use in all metalworking facilities.
A unique, specially shaped file with a non-slip grip, color-coded handle. The Rockwell value is printed on handle.
Flexbar precision testing files have specially curved tips which can reach into internal slots, grooves and bores which cannot otherwise be tested using conventional types of fixed or portable hardness testers. They can be taken out-of-factory sites to test for hardness on large structures or segments of machinery. For example large surface-hardened gears, large printing cylinders or weld zones of heat affected pipe lines which cannot be moved to a stationary te

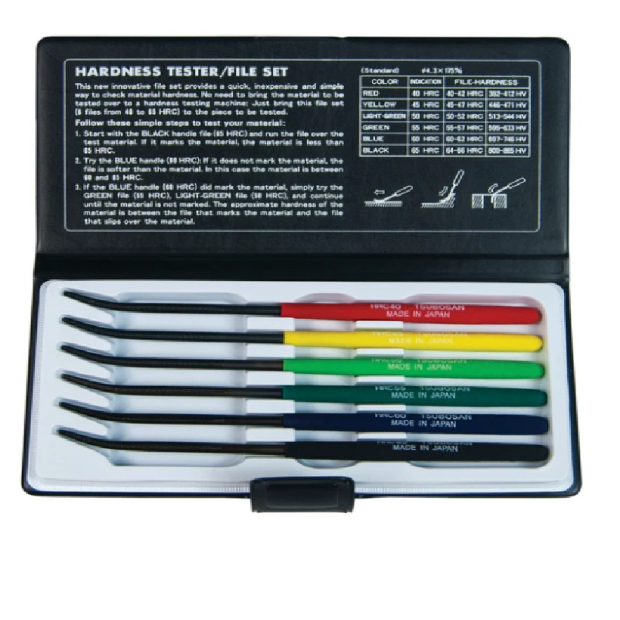

Hardness Testing File Set
Easy to use, portable Rockwell hardness testing system. For use in all metalworking facilities.
A unique set of six specially shaped files, each with a non-slip grip, color-coded handle. The Rockwell value is printed on each handle and the files range from HRc 40 through HRc 65.
Flexbar precision testing files have specially curved tips which can reach into internal slots, grooves and bores which cannot otherwise be tested using conventional types of fixed or portable hardness testers. They can be taken out-of-factory sites to test for hardness on large structures or segments of machinery. For example large surface-hardened gears, large printing cylinders or weld zones of heat affected pipe lines which cannot be moved to a stationary tester.
Includes deluxe fitted case complete with instructions and conversion chart Rockwell C to Vickers.

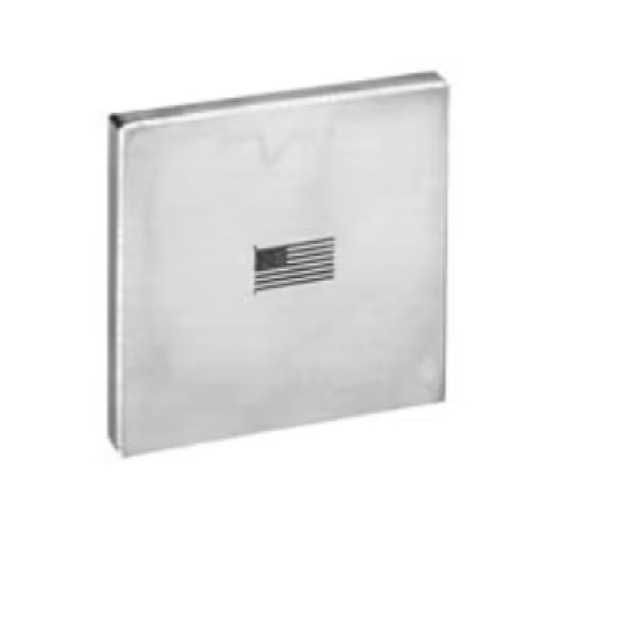

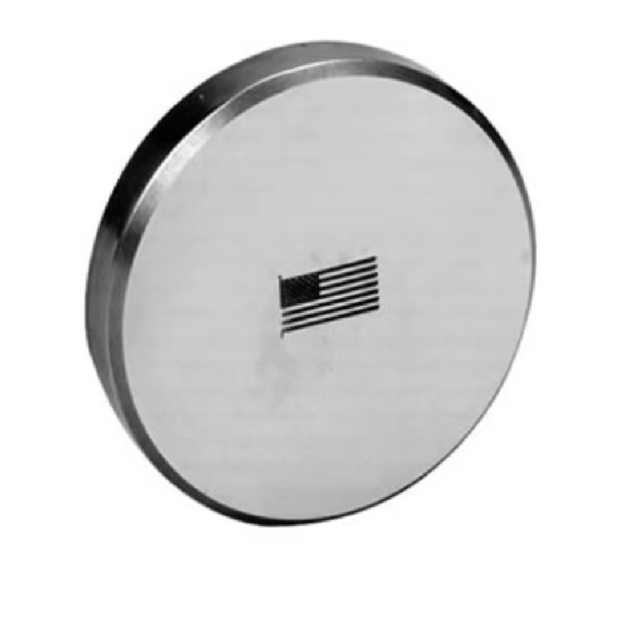

NIST Traceable Rockwell Test Blocks (C Scale)
Available in HRCN 25 to 63.
Manufactured from the highest quality steel with a special heat treat and cold treat process which insures maximum consistency and repeatability.
The NIST Traceable Test Blocks for the Rockwell "C" scale will provide complete traceability to NIST. These test blocks are ground, lapped and polished to a mirror finish of one micron.
A NIST Traceable Certificate is furnished with each block at no charge.
Available in Rockwell "C" scale. Blocks are round.
Accuracy exceeds ASTM E10, E92 and E384 Standards.
18750-LG
18750-YE
18750-RD
18750
20538
20537
20536
20535
20534
20533
20532
20555
