BVM-100

Internal Bore Video Measurement/Inspection System
Inspects bores with precise vertical control
P.C. is not required
Camera connects directly to monitor
Measures groove heights
Measures through hole distance
Inspect for F.O.D.
0-7" Range
2-3" Throat Clearance - Call for extended part height options
Larger Stands, Scopes and Lighting options Available. Please call with your application requirements.
2.0 Megapixel camera w/internal crosshair generator
2.0GB SD memory Card
Digital Vertical measurement stand
7" 4mm 90° borescope
Battery Illuminator
23" Hi-Resolution monitor
18-12720 Lightsource
13283 10 foot light guide

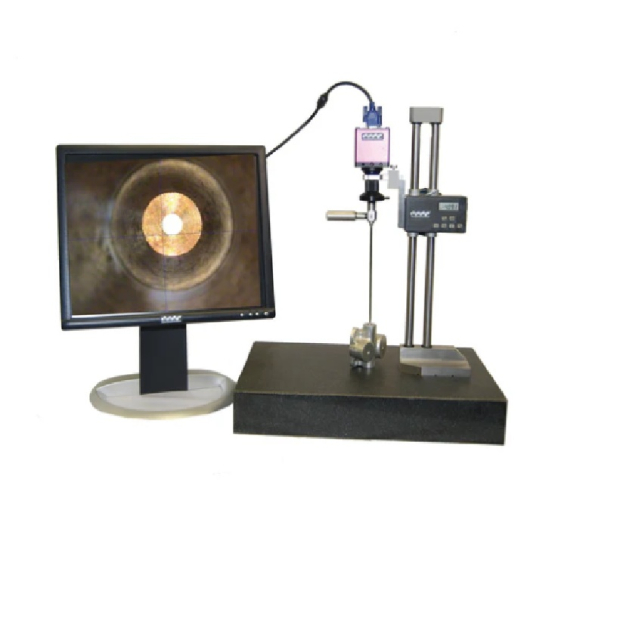

Note: Surface plate is not included (as shown in photo
