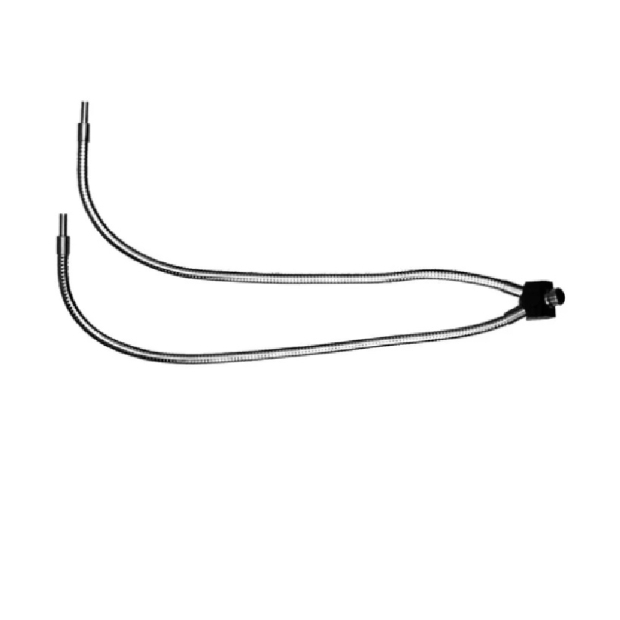

Stayset Bifurcated Metal Gooseneck Lite-Pipes™

For Use With Flexbar Litesources

Use fiber-optic LITE-PIPES™ to solve your lighting problems. Get a BRIGHT beam of COLD light into inaccessible locations.
Flexible or Stayset, Single or Bifurcated, Vinyl or Metal Covered ... Use them in the lab, shop or field ... wherever you need to add a flexible, pencil sized beam of cold, bright light. Used with our variable intensity, quartz-halogen Litesource™, you can light microscopes, machine tools (even under oil), borescopes, and deep bores. You can even use them to light up dark, inaccessible locations on tools, dies or piece parts you want to inspect. All styles have stainless steel end ferrules.
Rugged stainless steel flexible armor cover gives you strength and protects the fibers. Good for temperatures up to 600°F.

Please note: Model No. 12789 has 2' vinyl/flexible single pipe leading to 2' bifurcated stayset portion.
Available in diameters 1/16, ⅛, ¼. These have two identical arms with a common end.
Lengths in 2ft. and 4ft.

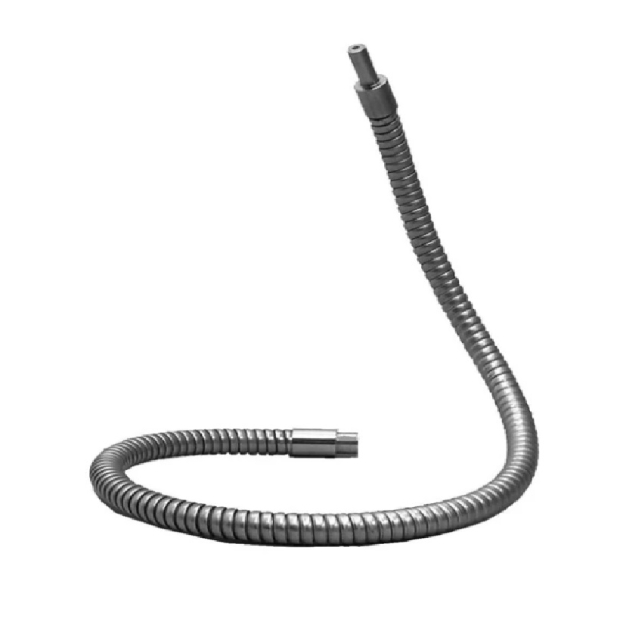

Stayset Single Metal Gooseneck Lite-Pipes™

For Use With Flexbar Litesources

Use fiber-optic LITE-PIPES™ to solve your lighting problems. Get a BRIGHT beam of COLD light into inaccessible locations.
Flexible or Stayset, Single or Bifurcated, Vinyl or Metal Covered ... Use them in the lab, shop or field ... wherever you need to add a flexible, pencil sized beam of cold, bright light. Used with our variable intensity, quartz-halogen Litesource™, you can light microscopes, machine tools (even under oil), borescopes, and deep bores. You can even use them to light up dark, inaccessible locations on tools, dies or piece parts you want to inspect. All styles have stainless steel end ferrules.

Rugged stainless steel flexible armor cover gives you strength and protects the fibers. Good for temperatures up to 600°F
Available in diameters 1/16, ⅛, ¼.
Lengths in 2ft. and 4ft.

Stayset Single Metal Gooseneck Lite-Pipes™

For Use With Flexbar Litesources

Use fiber-optic LITE-PIPES™ to solve your lighting problems. Get a BRIGHT beam of COLD light into inaccessible locations.
Flexible or Stayset, Single or Bifurcated, Vinyl or Metal Covered ... Use them in the lab, shop or field ... wherever you need to add a flexible, pencil sized beam of cold, bright light. Used with our variable intensity, quartz-halogen Litesource™, you can light microscopes, machine tools (even under oil), borescopes, and deep bores. You can even use them to light up dark, inaccessible locations on tools, dies or piece parts you want to inspect. All styles have stainless steel end ferrules.
Rugged stainless steel flexible armor cover gives you strength and protects the fibers. Good for temperatures up to 600°
Available in diameters 1/16, ⅛, ¼.
Lengths in 2ft. and 4ft.

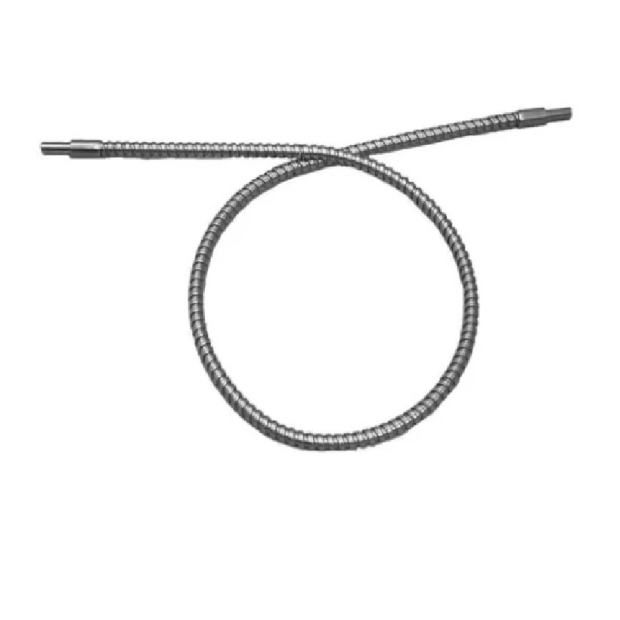

Flexible Single Metal Lite-Pipes™
For Use With Flexbar Litesources

Use fiber-optic LITE-PIPES™ to solve your lighting problems. Get a BRIGHT beam of COLD light into inaccessible locations.
Flexible or Stayset, Single or Bifurcated, Vinyl or Metal Covered ... Use them in the lab, shop or field ... wherever you need to add a flexible, pencil sized beam of cold, bright light. Used with our variable intensity, quartz-halogen Litesource™, you can light microscopes, machine tools (even under oil), borescopes, and deep bores. You can even use them to light up dark, inaccessible locations on tools, dies or piece parts you want to inspect. All styles have stainless steel end ferrules.

Rugged stainless steel flexible armor cover gives you strength and protects the fibers. Good for temperatures up to 600°F
Available in diameters 1/16, ⅛, ¼.
Lengths in 2ft. and 4ft.

Flexible Single Metal Lite-Pipes™
For Use With Flexbar Litesources

Use fiber-optic LITE-PIPES™ to solve your lighting problems. Get a BRIGHT beam of COLD light into inaccessible locations.

Flexible or Stayset, Single or Bifurcated, Vinyl or Metal Covered ... Use them in the lab, shop or field ... wherever you need to add a flexible, pencil sized beam of cold, bright light. Used with our variable intensity, quartz-halogen Litesource™, you can light microscopes, machine tools (even under oil), borescopes, and deep bores. You can even use them to light up dark, inaccessible locations on tools, dies or piece parts you want to inspect. All styles have stainless steel end ferrules.
Rugged stainless steel flexible armor cover gives you strength and protects the fibers. Good for temperatures up to 600°F
Available in diameters 1/16, ⅛, ¼.
Lengths in 2ft. and 4ft.

Flexible Single Metal Lite-Pipes™
or Use With Flexbar Litesources

Use fiber-optic LITE-PIPES™ to solve your lighting problems. Get a BRIGHT beam of COLD light into inaccessible locations.
Flexible or Stayset, Single or Bifurcated, Vinyl or Metal Covered ... Use them in the lab, shop or field ... wherever you need to add a flexible, pencil sized beam of cold, bright light. Used with our variable intensity, quartz-halogen Litesource™, you can light microscopes, machine tools (even under oil), borescopes, and deep bores. You can even use them to light up dark, inaccessible locations on tools, dies or piece parts you want to inspect. All styles have stainless steel end ferrules.
Rugged stainless steel flexible armor cover gives you strength and protects the fibers. Good for temperatures up to 600°F
Available in diameters 1/16, ⅛, ¼.
Lengths in 2ft. and 4ft.

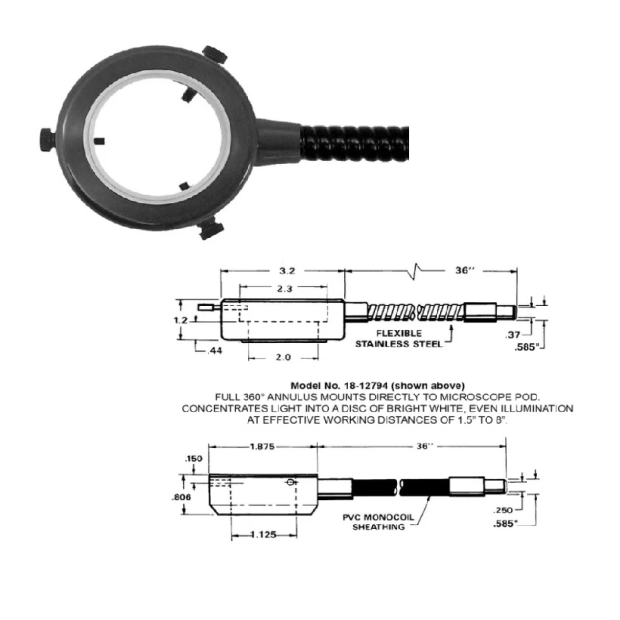

Fiberoptic Ring Lite
360° Ring illuminators available in standard annular style.



Available in 1.125" I.D. and 2" I.D. Models. Ringlite adapters available for custom ID configurations. 2" model has 36" PVC sheathing on guide with .585" diameter end.



Full 360° annulus mounts directly to microscope pod. Concentrates light into a disc of bright white, even illumination at effective working distances of 1.5" to 8"

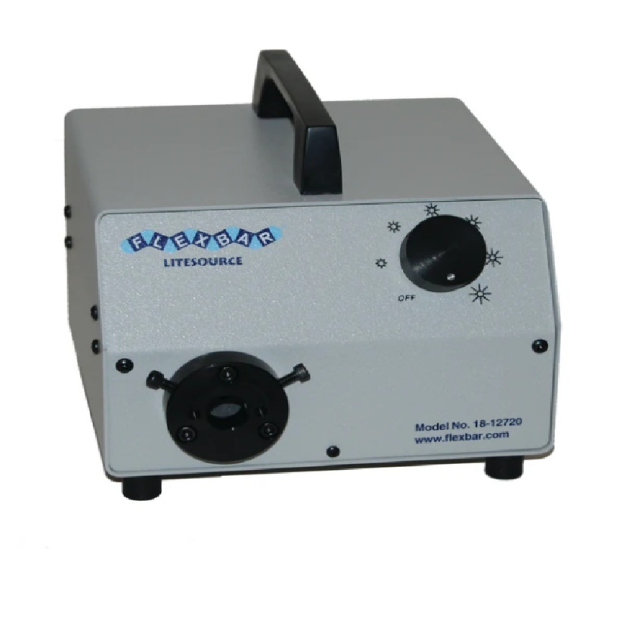

Flexbar 150W Halogen Lightsource
The deluxe 150 watt LITESOURCE - a bright, cool fiber optic light supply using Quartz Halogen lamps, with solid state components, variable intensity, control and built-in carrying handle. Ideal for all industrial and laboratory use. Our Model 18-12720 is designed for microscope and borescope illumination without creating the dark spot shadow effect. High efficiency cooling fan is whisper quiet and designed to prolong bulb life. At 90% of full intensity, bulb life increases 50 to 100 hours. Color temperature is 3,450°K with a lamp radiance of 4,500 Lumens. USE WITH FLEXBAR FIBER-OPTIC LITE-PIPES or ANNULAR RINGLITE.
Lamp: 150W quartz halogen, 21V EKE

Voltages: 115 VAC, 200W, 50/60 Hz or 230 VAC, 200W, 50/60 Hz (Set at factory)

Lamp Life: 200-10,000 hours, depending on intensity

Fuse: 115 VAC: 3 Am, 250V, 3A slow blow, 5x20 mm 230 VAC: 2 Am, 250V, 2A slow blow, 5x20 mm

Color Temperature: 3100-3400 degrees Kelvin depending on lamp used

Safety Approvals: 115 VAC-UL & C-UL, 230 VAC-CE

Dimensions: 8 in. L x 7 in. W x 7 in. H

Weight: 7 lbs (3.6 kg.)

Max. Housing Temp.: 15 degrees above ambient

Fiber Optic Connection: The Litesource illuminator uses a B-type fiber optic nosepiece with a 0.585 in. (15mm) ID.

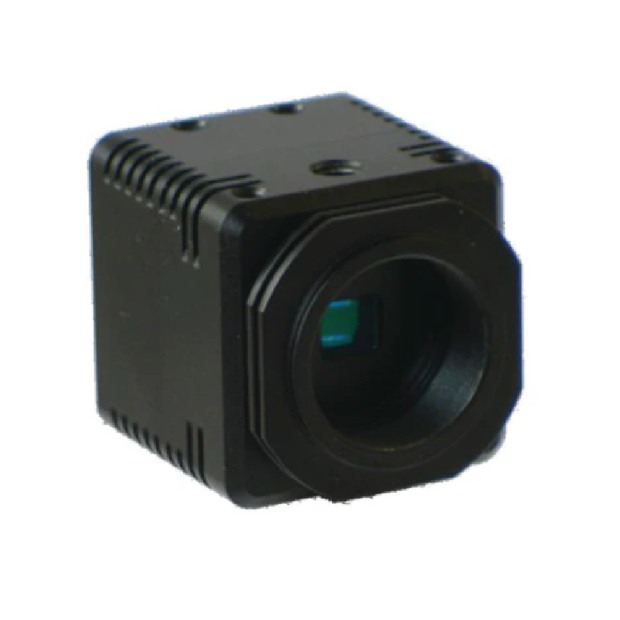

HDMI Direct High Definition 1080p Camera
Includes Built-In Crosshair Generator.

No need for a computer! These DVI 16:9 Aspect Ratio Color Cameras connect right into a HDMI port. Superb Images and an Internal Multi-Color Crosshair Generator. The 1280 x 720 image is the new Standard for Video Inspection.



(Power supply (Model No. 18-HDMI-PWR) and HDMI Cable (18-HDMI-CABLE) - order separately)

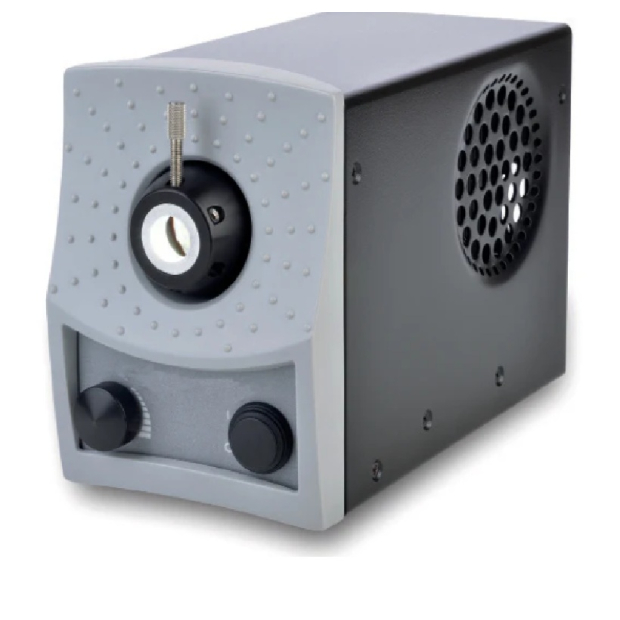

LED Powered Fiber Optic Illuminator
Daylight Color Temperature, Wide Angle, High Intensity, Optimized for Large Fiber Bundles. Comes with Standard 15mm (.590") Nosepiece, Dimmable, Minimum 65 CRI, Multichip Design, CCT Range 5000-8500
Features
1000 Lumen Light Output into 9mm fiber bundle
Small footprint (Dimensions below)
Heat pipe technology for superior cooling
Current/voltage limited for long life
Consistent color temperature
Linear light intensity control with continuous dimming
Quick change nose pieces available to accept virtually any light guide
Stackable housing suitable for mounting in space constrained applications
Universal power input
Industrial Applications
Microscopes and Video Microscopes
Borescopes
Industrial Imaging (Machine Vision)
Custom process and inspection equipment
Wire Bonders & Laser Welding
Long Life (25,000 hr) eliminates well over 100 lamp replacements
High Brightness LEDs
Precision Molded lensing assembly with anti-reflective coatings
Specifically designed for borosilicate fiber bundles
Less than 25% the energy consumption of standard 150W halogen
Lower energy consumption enhances safety & reliability
1 Year Warranty
Over temperature protection and dual fuse protection
ROHS Compliant
CE and UL/CSA pending

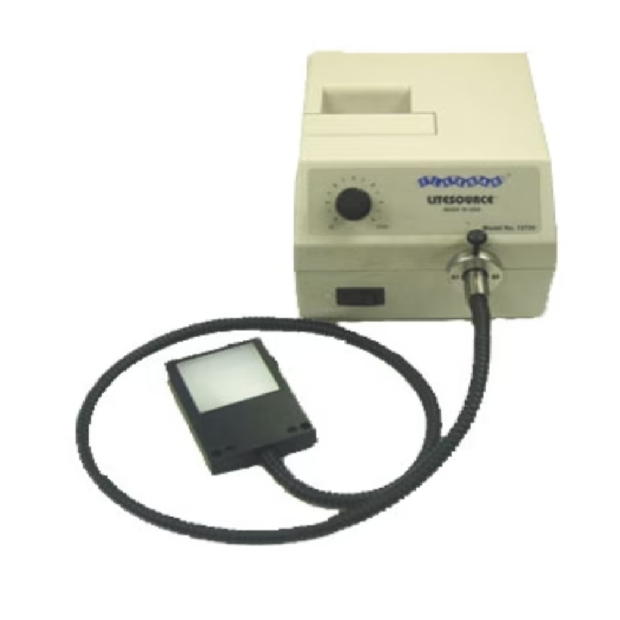

Bottom Lighting
Bottom lighting option for Optiflex video systems.

18-12720 halogen light source coupled with a 36” long fiber optic light pad which measures 2” x 2”. Can be used as stand-alone lighting.

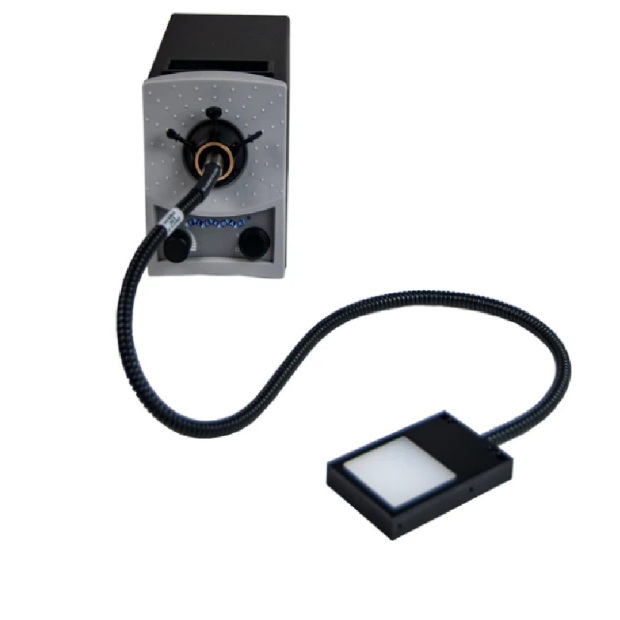

Fiberoptic Light Pad With LED Illuminator

12360 High power LED light source. Coupled with a 36” long fiber optic light pad which measures 2” x 2”.

Can be used as stand-alone lighting.
