Sharp-View™ Rigid Borescopes 2.7mm (.106”) 7” (175mm) 0° Standard (45°)
Features superb quality optics which provide clear, bright images for any standard industrial application.
Ideal for use with Flexbar Video Borescope Systems.
Probe tubing is stainless steel for extra durability.
Eyepiece is standard 32mm...accepts Flexbar C-Mount coupler No. 13285 for video system usage.
Integral cool fiberoptic lighting provides bright and even lighting.
Wide angle field of view for direct and lateral viewing.
Light guide post connects with Flexbar light guide (No. 13283) for use with Flexbar Lightsource or optional Flexbar portable light handle.
*15678 includes snap-on rotatable 90° viewing mirror tube accessory (5mm diameter).
Sharp-View™ Rigid Borescopes 1.2mm (.047”) 4.75” (120mm) 0° Standard (45°)
Features superb quality optics which provide clear, bright images for any standard industrial application.
Ideal for use with Flexbar Video Borescope Systems.
Probe tubing is stainless steel for extra durability.
Eyepiece is standard 32mm...accepts Flexbar C-Mount coupler No. 13285 for video system usage.
Integral cool fiberoptic lighting provides bright and even lighting.
Wide angle field of view for direct and lateral viewing.
Light guide post connects with Flexbar light guide (No. 13283) for use with Flexbar Lightsource or optional Flexbar portable light handle.
*15678 includes snap-on rotatable 90° viewing mirror tube accessory (5mm diameter).

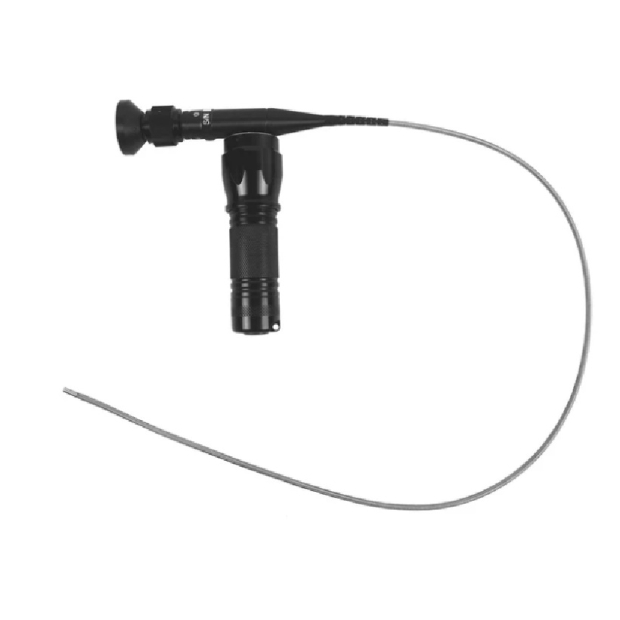

Flexbar Fiberoptic Flexible Borescopes
Complete with light handle and carrying case.
High Resolution: Smaller Diameter (3mm)
Models: Direct and Right Angle Viewing.
Designed to be a portable, rugged inspection device capable of producing a high-resolution image of critical components through access holes as small as 3.0mm. With intense fiber optic illumination and a crisp image delivered by high-resolution quartz optical fiber, this fiberscope is able to handle a host of inspection requirements where there is limited access.
High Resolution Fiber Imaging Bundle
Portable Battery Handle -3V-
Custom Foam Lined Carrying Cas
150 Watt Illuminator (12720)
Flexible Light Guide (13283)
35mm/Digital Still Camera Adapter
"C" Mount Video Camera Adapter
"C" Mount Video Camera and Monitor
Right Angle Viewing Adapter
Shaft Outside Diameter: .120 in. - (3mm)
Bend Radius: 1.5 in. - (38mm)
Shaft Construction: Braided Stainless Steel
Shaft Lengths: 24 in. - (61 mm) STD 36 in. - (91 mm) STD Custom Lengths Available
Field of View: 50 Degrees Standard 70 Degrees Available
Depth of Field: .2 in. to 3.0 in. - (5mm to 75mm)
Eyepiece: B-Style, Diopter Adjustable and Photo Capability
Direction of View: Forward Viewing Standard Right Angle Viewing with Adapter
Flexbar Fiberoptic Flexible Borescopes
Complete with light handle and carrying case.
High Resolution: Smaller Diameter (3mm)
Models: Direct and Right Angle Viewing.
Designed to be a portable, rugged inspection device capable of producing a high-resolution image of critical components through access holes as small as 3.0mm. With intense fiber optic illumination and a crisp image delivered by high-resolution quartz optical fiber, this fiberscope is able to handle a host of inspection requirements where there is limited access.
High Resolution Fiber Imaging Bundle
Portable Battery Handle -3V-
Custom Foam Lined Carrying Case
150 Watt Illuminator (12720)
Flexible Light Guide (13283)
35mm/Digital Still Camera Adapter
"C" Mount Video Camera Adapter
"C" Mount Video Camera and Monitor
Right Angle Viewing Adapter
Shaft Outside Diameter: .120 in. - (3mm)
Bend Radius: 1.5 in. - (38mm)
Shaft Construction: Braided Stainless Steel
Shaft Lengths: 24 in. - (61 mm) STD 36 in. - (91 mm) STD Custom Lengths Available
Field of View: 50 Degrees Standard 70 Degrees Available
Depth of Field: .2 in. to 3.0 in. - (5mm to 75mm)
Eyepiece: B-Style, Diopter Adjustable and Photo Capability
Direction of View: Forward Viewing Standard Right Angle Viewing with Adapter
Flexbar Fiberoptic Flexible Borescopes
Complete with light handle and carrying case.
High Resolution: Smaller Diameter (3mm)
Models: Direct and Right Angle Viewing.
Designed to be a portable, rugged inspection device capable of producing a high-resolution image of critical components through access holes as small as 3.0mm. With intense fiber optic illumination and a crisp image delivered by high-resolution quartz optical fiber, this fiberscope is able to handle a host of inspection requirements where there is limited access.
High Resolution Fiber Imaging Bundle
Portable Battery Handle -3V-
Custom Foam Lined Carrying Case
150 Watt Illuminator (12720)
Flexible Light Guide (13283)
35mm/Digital Still Camera Adapter
"C" Mount Video Camera Adapter
"C" Mount Video Camera and Monitor
Right Angle Viewing Adapter
Shaft Outside Diameter: .120 in. - (3mm)
Bend Radius: 1.5 in. - (38mm)
Shaft Construction: Braided Stainless Steel
Shaft Lengths: 24 in. - (61 mm) STD 36 in. - (91 mm) STD Custom Lengths Available
Field of View: 50 Degrees Standard 70 Degrees Available
Depth of Field: .2 in. to 3.0 in. - (5mm to 75mm)
Eyepiece: B-Style, Diopter Adjustable and Photo Capability
Direction of View: Forward Viewing Standard Right Angle Viewing with Adapter

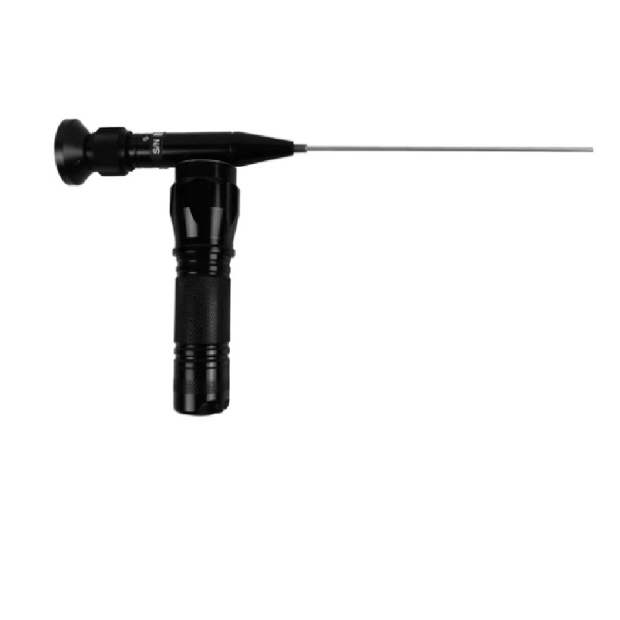

Provide High Resolution Image Of Critical Components Through Very Small Access Holes: Semi-Rigid & Flexible Models from .039" dia. to .078" dia.
This Semi-Rigid Microborescope was designed to be a portable, rugged inspection device capable of producing a high resolution image of critical components through access holes as small as 1.0mm or .039". With intense fiber optic illumination and a crisp image delivered by high resolution quartz optical fiber, this microborescope is able to handle a host of inspection requirements where limited access is a constraint. Unlike standard lens-type borescopes, this borescope will tolerate moderate shaft deflection due to its fiberoptic construction. Includes portable light handle, and heavy-duty carrying case.
Shaft Outside Dia.: .039" or .078".
Shaft Deflection: ±15° (semi-rigid)
Field of View: 50º Standard, 70º Available.
Depth of Field: .118" to
10X Mag. Eyepiece.
Flexbar Fiberoptic Microborescopes (1mm & 2mm)
Provide High Resolution Image Of Critical Components Through Very Small Access Holes: Semi-Rigid & Flexible Models from .039" dia. to .078" dia.
This Semi-Rigid Microborescope was designed to be a portable, rugged inspection device capable of producing a high resolution image of critical components through access holes as small as 1.0mm or .039". With intense fiber optic illumination and a crisp image delivered by high resolution quartz optical fiber, this microborescope is able to handle a host of inspection requirements where limited access is a constraint. Unlike standard lens-type borescopes, this borescope will tolerate moderate shaft deflection due to its fiberoptic construction. Includes portable light handle, and heavy-duty carrying case.
Shaft Outside Dia.: .039" or .078".
Shaft Deflection: ±15° (semi-rigid)
Field of View: 50º Standard, 70º Available.
Depth of Field: .118" to 2.0".
10X Mag. Eyepiece.
Flexbar Fiberoptic Microborescopes (1mm & 2mm)
Provide High Resolution Image Of Critical Components Through Very Small Access Holes: Semi-Rigid & Flexible Models from .039" dia. to .078" dia.
This Semi-Rigid Microborescope was designed to be a portable, rugged inspection device capable of producing a high resolution image of critical components through access holes as small as 1.0mm or .039". With intense fiber optic illumination and a crisp image delivered by high resolution quartz optical fiber, this microborescope is able to handle a host of inspection requirements where limited access is a constraint. Unlike standard lens-type borescopes, this borescope will tolerate moderate shaft deflection due to its fiberoptic construction. Includes portable light handle, and heavy-duty carrying case.
Shaft Outside Dia.: .039" or .078".
Shaft Deflection: ±15° (semi-rigid)
Field of View: 50º Standard, 70º Available.
Depth of Field: .118" to 2.0".
10X Mag. Eyepiece.
15671

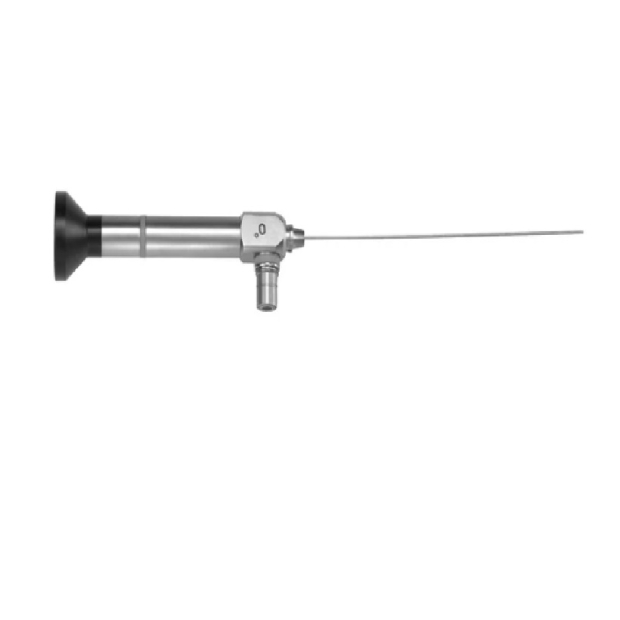

15670
13542
13541
13540
18958-RA
18958
18957-RA
18957
18956-RA
18956

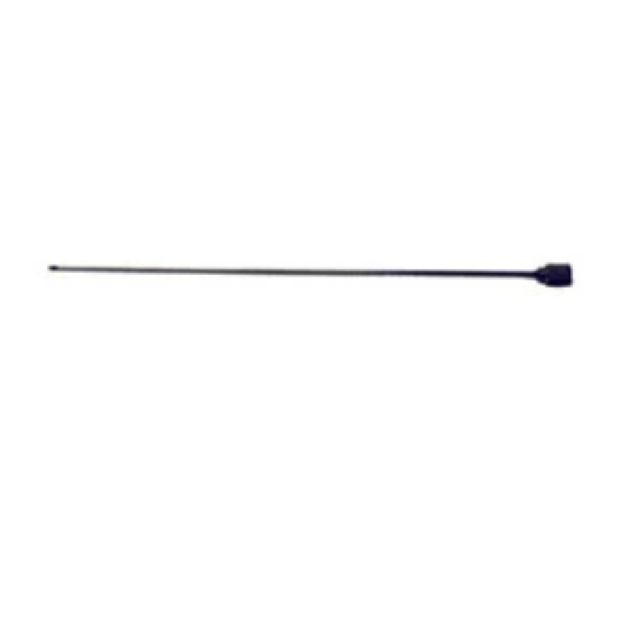

18955-RA
