12360

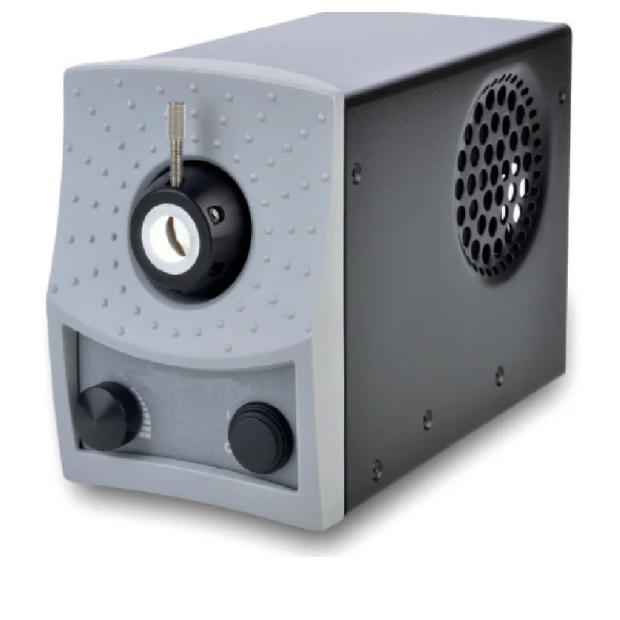

LED Powered Fiber Optic Illuminator
Daylight Color Temperature, Wide Angle, High Intensity, Optimized for Large Fiber Bundles. Comes with Standard 15mm (.590") Nosepiece, Dimmable, Minimum 65 CRI, Multichip Design, CCT Range 5000-8500
Features
1000 Lumen Light Output into 9mm fiber bundle
Small footprint (Dimensions below)
Heat pipe technology for superior cooling
Current/voltage limited for long life
Consistent color temperature
Linear light intensity control with continuous dimming
Quick change nose pieces available to accept virtually any light guide
Stackable housing suitable for mounting in space constrained applications
Universal power input
Industrial Applications
Microscopes and Video Microscopes
Borescopes
Industrial Imaging (Machine Vision)
Custom process and inspection equipment
Wire Bonders & Laser Welding
Long Life (25,000 hr) eliminates well over 100 lamp replacements
High Brightness LEDs
Precision Molded lensing assembly with anti-reflective coatings
Specifically designed for borosilicate fiber bundles
Less than 25% the energy consumption of standard 150W halogen
Lower energy consumption enhances safety & reliability
1 Year Warranty
Over temperature protection and dual fuse protection
ROHS Compliant
CE and UL/CSA pending
