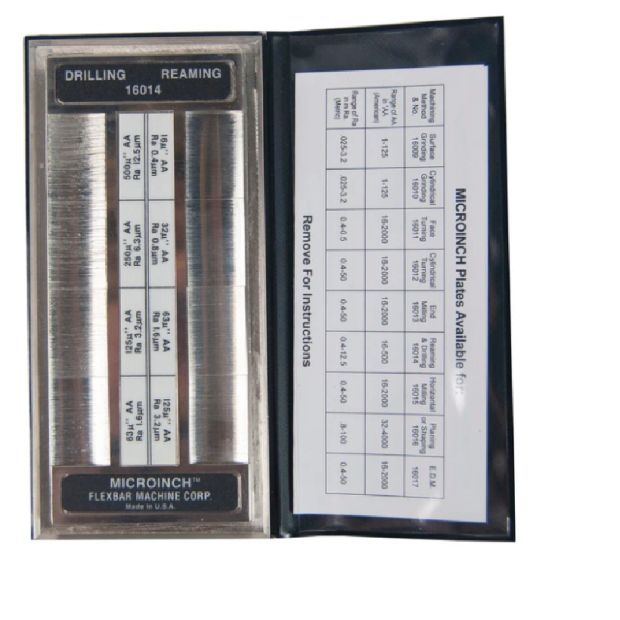

Microinch™ Comparator Plates
Our high-precision Microinch™ Comparator Plates serve as the premium standard for surface roughness (texture) comparison. Made of durable, solid electroformed nickel, these plates offer the largest variety of standards available for assessing, specifying, and verifying the degree of roughness of machined parts across global manufacturing sectors.
Designed to facilitate clear operational assessments by symbol alignment, this engineering system covers every machining method known to industry. Compact and highly efficient, it enables operators and auditors to make quick tactile and visual checks directly on the shop floor without bottlenecks.
Solid Electroformed Nickel
Constructed utilizing cutting-edge solid electroformed nickel replication technologies, ensuring absolute durability and highly reproducible tactile reference accuracy.
Universal Machining Formats
Provides an expansive variety of engineering evaluation scales, completely supporting every standard and complex machining method known to industrial production.
Pocket-Sized Ergonomics
Engineered to be exceptionally light in weight for effortless portability. Supplied safely inside a protective plastic wallet for rapid field testing deployment.
Technical Specifications
- Product Standard Line Microinch™ Comparator Plates (Surface Texture Standards)
- Material Composition Solid Electroformed Nickel
- Configuration Variety 15 different sets available (Review options via procurement consultation)
- Individual Value Grid Size 16mm x 25mm (or 5/8" x 1") per segment value
- Overall Plate Dimensions 52mm x 128mm (or 2 1/16" x 5") total plate envelope
- Portability & Housing Ultra-light pocket configuration. Supplied standard in a premium plastic wallet.
- Calibration Lead Time Approximately 3 weeks (Please note when scheduling procurement timelines)
- Quality Documentation Traceable Certificate of Conformance (CoC) / Certification available upon inquiry.
